Product Description

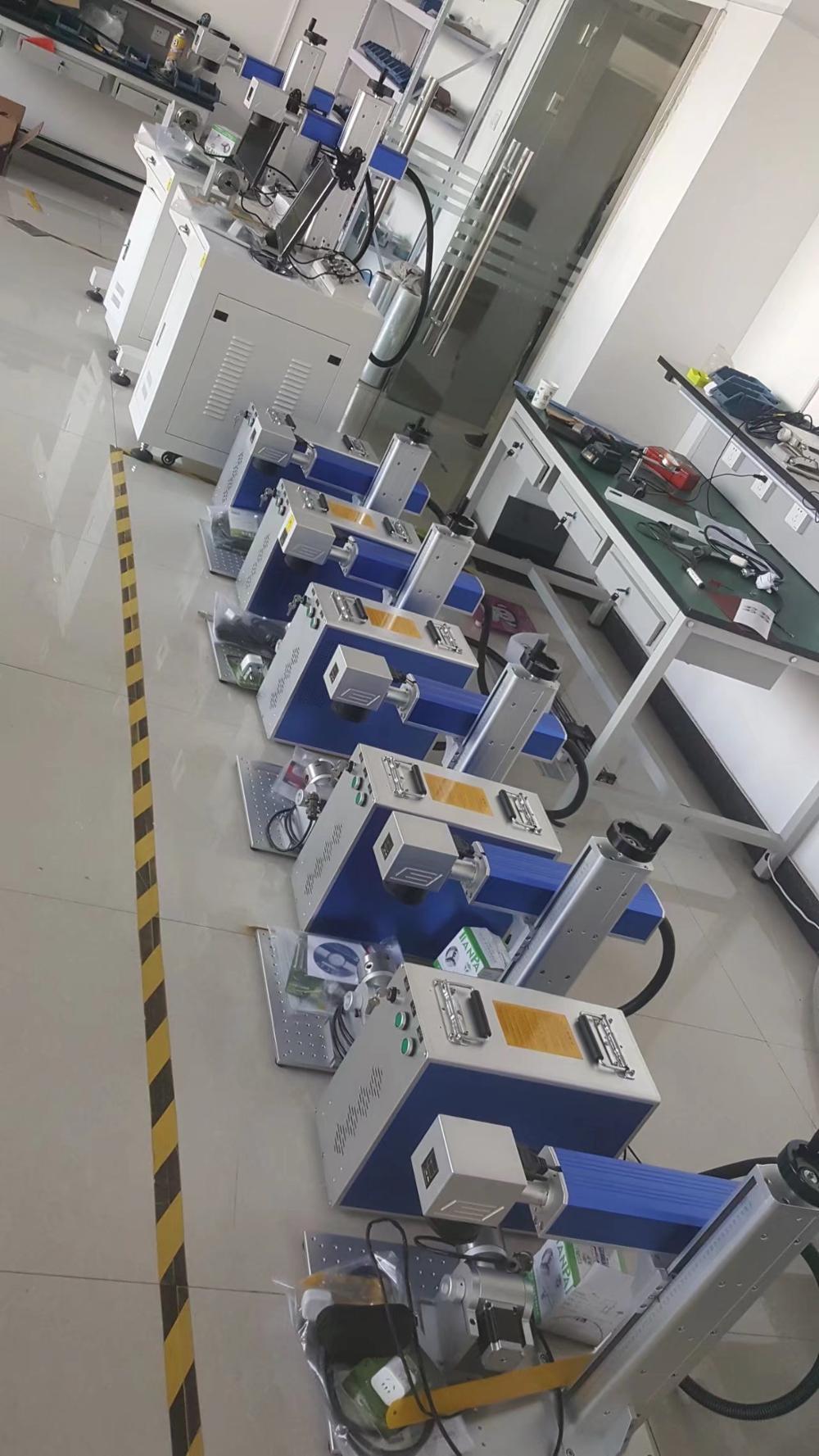

Portable Fiber Laser Marking Machines : Adopts all-in-one ovarall design, which is easily integrate into industrial production processing. it can operate laser directly by controling interface (USB) , no supplies, and products' depreciation costs are greatly reduced. By comparison, it has performances including high efficiency, long life and maintenance-free and so no,but the traditional laser does not.
Features
1)Featured with the integrated design, the fiber laser marking system is of compact size, low consumption, long life-span, high efficiency, free from maintenance, convenient to be installed and taken away.
2)The whole machine is of easy operation, and one key to control the power on and power off.
3)With strong extensive ability, the equipment can be available in all kinds of working environment, especially suitable for the unique processing and operation, convenient to be matched with other automatic equipments.
4)With superior laser beam, and precise light spot, it is no need of consumable items.
5)he scanning galvanometer is imported with original packaging, and with compact size and fast speed, it is of precise location, its software operation is simple and function is strong.
Technical Parameters of Portable Laser Marking Machine
| | | Marking area: | 110*110mm(option:70*70mm,175*175,200*200,300*300) | | Laser power: | 10W, 20W, 30W, 50W ,100W(optional) | | Laser wavelength: | 1064nm | | Engraving speed: | ≤7000mm/s | | Pulse repetition frequency: | 20-100KHZ | | Marking depth: | 0.01-0.5mm | | Repeatability accuracy: | ±0.002mm | | Typical beam quality: | M2<1.5 | | Minimum line width: | 0.01mm | | Minimum character width: | 0.2mm | | Applied materials | Stainless steel, plastic, rubber, all metals | | Applicable Industries | Electronic components, IC, electrical appliances, mobile phones,
plastic buttons, color paper, food packaging, clocks and watches,
molds, gaskets and seals, bearing, auto parts, hardware, tools,
building materials, PVC tubes, etc. | | Power adjustment range: | 1-100% | | Power stability: | 8 hours(<±1%RPM) | | Unit power: | 500w | | Cooling way: | Air cooling | | Working temperature: | Room temperature(0-40°C) | | Power supply: | AC220V,50/60HZ(option:110V) |
|
Application of Portable Fiber Laser Marker
1. Ink and paint; phone battery labels, panels, phone key-press, small daily necessities ,accessories and so on.
2. Ceramics, EP materials; marking of electronic component package, IC, etc.
3. Plastic products; mark device shell, electronic products, LOGO, and other numerical orders
4. Metal and its surface; Stainless steel, copper, aluminum and oxidation, electroplating; used in marking hardware, daily necessities, electric cladding, Phone case etc.
5. Keyboard and keystoke; Fine Marking of keyboard and keystoke.
Guarantee And After-sale Service
.One year guarantee for whole machine
.24 hours technical support by E-mail
.Calling or door-to-door service
.Use-friendly English software,use manual and detailed videos/CD
we committed to: Supernova machinery for all products sold will be free one-year warranty, life-long maintenance!
PS: Welcome to send the samples to our company and we can make the samples free so that you can choose the most suitable product.
