Feature
1. Marking effect is clear and permanent, easy to operate and maintain;
2. High speed, high precision, reliable performance and long life time;
3. High compatibility: PLT, AI, DXF, DWG, BMP, SAF, JPEG, PNG, GIF, TXT etc.;
4. High flexibility: Logo, QR code, bar code, serials number, text, photo etc.;
5. No consumables, environmental protection and energy saving.
Application

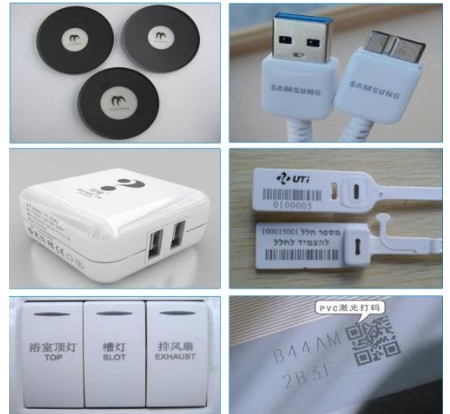

DMF series laser marking machines are widely applied in stationery, electronic components, nameplate, glasses, jewelry, watch, clock, plastic, hardware, knives, tools, medical device, IC card, kitchen and bathroom, auto industry, aviation field etc..
Materials
It can mark all kind of metals and some nonmetal, like gold, silver, copper, bronze, stainless steel, aluminum, titanium, rubber, ABS, PVC etc..
Technical Parameters
| Model | DMF-20W ( 30W / 50W / 70W / 100W ) |
| Power | 20W |
| Laser type | Fiber |
| Laser Wavelength | 1064nm |
| Marking Area | 100mm*100mm(optional) |
| Marking Speed | 7000mm/s |
| Min. Line Width | 0.012mm |
| Min. Character | 0.2mm |
| Beam Quality | M2 <1.6 |
| Operation System | Win 7 / Win 8 / Win 10 |
| Cooling Way | Air cooling |
| Voltage | 220V / 50HZ or 110V / 60HZ |
| Power Consumption | <500W |
After-sales Service and Guarantee
1. Guarantee for whole machine during warranty period.
2. 24 hours technical support by E-mail
3. Calling or door-to-door service
4. Use-friendly English software,use manual and detailed videos/CD
The warranty of laser marking machine is 2 years and the warranty of laser welding machine is 1 year.
We can also make adjustments according to the requirment of customers.
