DIY Supposed Uv Laser Cutting Machine Water Cooling Mode Scanlab Goggle System
Product Description
Description of UV laser cutting machine:
1. High-performance, multi-purpose UV laser cutting machine, non-contact work platform with high-speed digital galvanometer processing, to avoid cutting tools, die processing implicit hidden damage.
2.355nm UV laser, short wavelength, high energy density, small heat-affected zone, eliminating the need for mechanical processing with the cooling water, cleaning water, cutting and dust, can quickly destroy the molecular structure of material to achieve cold work.
3. High-speed mobile gantry structure with the design of the flight light path can be customized to carry a dedicated automatic loading and unloading machine, or paired SMT line.
4. Recognize DXF and GERBER drawing files, dispense molds for rapid prototyping, cutting and drilling, especially for complex, delicate and difficult products.
5.CCD automatic positioning compensation deformation function can more adapt to the product deformation, high-profile automatic edge cutting automatic compensation function can be adapted to the pre-stress caused by the process of offset, cutting edge more smooth.
6. Duplex platform design, eliminating the manual or automatic robot replacement of materials time, beyond the market the same type of equipment equivalent laser efficiency of 30%.
7. Mobile camera module sub-board, fingerprint recognition module cutting, TF card memory card, FPC flexible circuit board high-speed laser cutting, cutting thickness 1MM processing without burr, high precision, small thermal effects.
8. independent research and development based on WINDOWS control software, the Chinese version, a key fool-type operation is simple and quick.
Technical Parameters:
| Model | CY-15D |
| Name | UV laser cutting machine |
| Laser | 355nm wave length,united States light |
| Laser power | 1-20W adjustable |
| Laser pulse frequency | 30Khz-200Khz adjustable |
| Output pulse width | <20ns |
| Pump source life | 20000 hours |
| Cutting thickness | ≤1.5mm |
| Goggle system | Scanlab |
| Goggle scanning range | 50mm*50mm |
| Cutting efficiency | 1000mm/s depending on cutting thickness |
| Focus spot | 20±5um |
| Cutting width | 25±5um |
| Moving platform | Linear motor moves the gantry |
| Platform positioning accuracy | ±3um |
| Repeat positioning accuracy | ±2um |
| Cutting size | 350mm*500mm can be customized |
| Shrink compensation function | Auto compensation according to Mark point |
| Processing accuracy | ±30um |
| Environment requirement | Tem 25±5℃,ground vibration acceleration<0.01mm/s² |
| Dimensions | 1770mm*1350mm*2050mm(L*W*H) |
| Net weight | 2500kg including the vacuum cleaner |
| Acceptable file format | DXF and Gerber |
| Power consumption | 3.5kw/H including the vacuum cleaner |
| Recognition system | CDD automatic positioning function system |
Our Services
.One year guarantee for whole machine
.24 hours technical support by E-mail
.Calling or door-to-door service
.Use-friendly English software,use manual and detailed videos/CD
Product Tags:
|
|

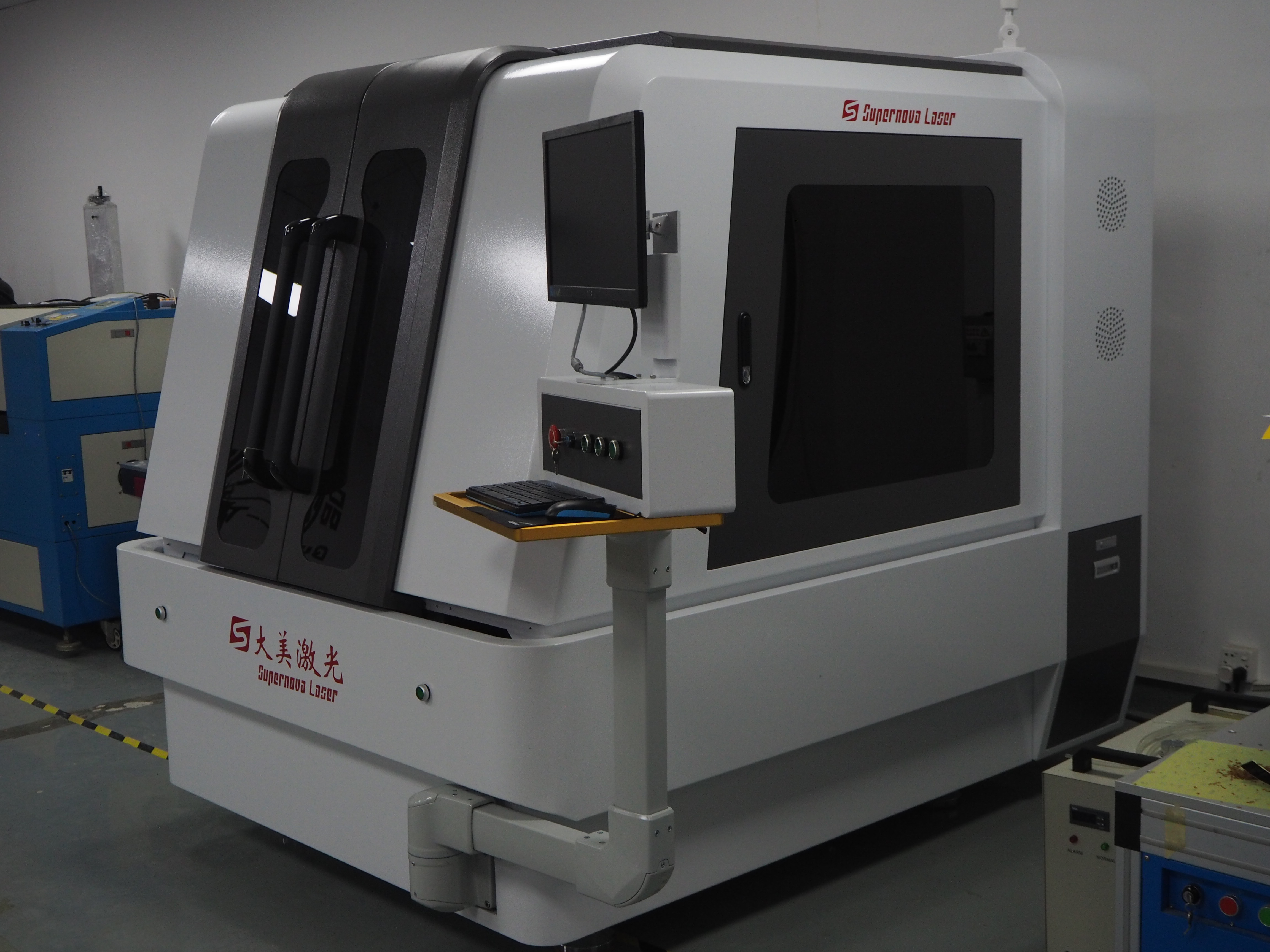

DIY Supposed Uv Laser Cutting Machine Water Cooling Mode Scanlab Goggle System Images
|
