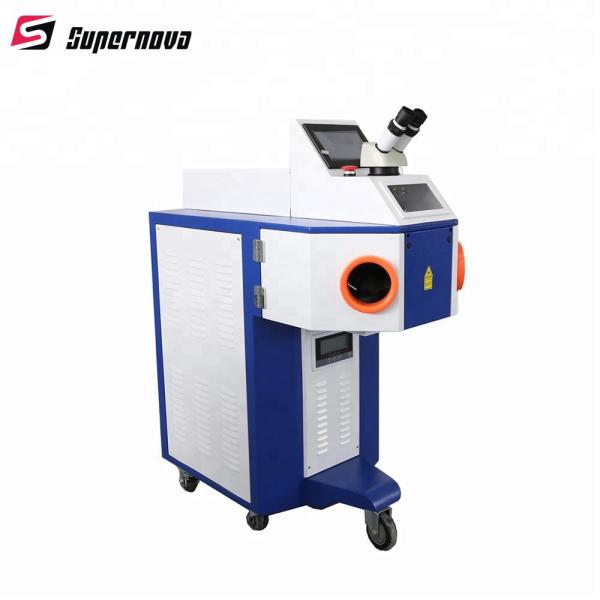

High Precision Welding Jewelry Equipment Automatic Titanium Laser Welding
Product Description
Jewelry Titanium Laser Welding is used for perforation and spot welding of sand hole for gold and silver jewelries. Laser spot welding is an important application of laser materials processing technology. Spot welding is thermal conduction, namely, the laser radiates the surface of the part, and the heat on the surface expands inside through heat conduction. By controlling parameters such as laser pulse width, energy, peak value and repeating frequency, the part will melt, and thus forming specific molten pools. Due to its unique benefit, the product has been successfully applied to gold and silver jewelries processing, and welding of small-sized parts
Main features
1. Whole machine adopted ergonomics design. It can better meet jewelry industry’s requirements on precision, beautiful, stable performance, long time and constant processing.
2. Big inner space, it is convenient for placing tools and fixtures.
3. It is equipped with electric focusing mechanism, digital scale reading display, regulating switch for laser parameters, it operates more smoothly.
4. It is easy to replace dust screen, clean working area and recycle welding slag.
5. With the LED ring-shaped astral lamp which can be highlighted and microscope imported from Germany, the observation on welding position is much clearer.
6. More precise light spot, it meets the requirement of precision welding.
Specifications
| Maximum average power | 200W |
| Laser wavelength | 1064nm |
| Max Pulse energy | 120J |
| Laser welding depth | 0.1-3.3mm |
| The pulse width | 0.3-20ms |
| Batter, laser welding frequency | 0.5-20Hz |
| Adjustable range of spot size | 0.2-2mm |
| Control system | Industrial computer |
| Machine Power consumption | ≤4kw |
| The demand for electricity | 220V±0%/50Hz/30A |
| System components and environmental system components | Host computer, Cold water tank |
| Supplies | Xenon lamp, filter, protection lens, argon gas |
| Installation environment | Installation Location: 4 square meters. |
| Environment | clean, no dust or less dust |
| Temperature | 55℉(13℃)to 82℉(28℃) |
| Humidity | 5% to 75%non-condensing. |
| Power | 220V50HZ Alternating current,.30A an air switch, voltage stability |
Our Service
Guarantee And After-sale Service:
.One year guarantee for whole machine
.24 hours technical support by E-mail
.Calling or door-to-door service
.Use-friendly English software,use manual and detailed videos/CD
Packing & Shipping
packaging details: outside package:sandard export wooden cases,inner package:stretch film
delivery detail:about 7 working days after payments
