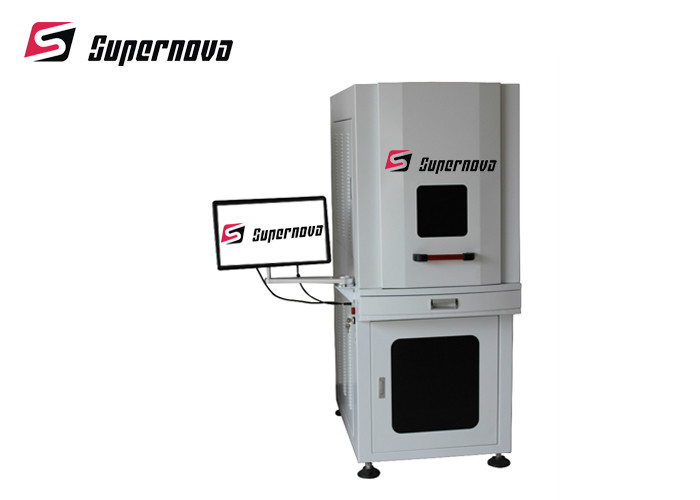

1. 3D laser marking machine using the German IPG fiber laser, the beam quality is much better than the traditional, the 3D laser marking spot is smaller, suitable for precision fine marking.
2. 3D laser marking machine using the US import scanning system and scanning head, infrared focusing system (optional) without measuring the focal length, work more convenient.
3. 3D laser marking machine spot quality is good, power stability, life of 3D laser marking machine more than 100,000 hours.
4. Free off Maintenance.
5. 3D laser marking machine with High precision of 3D positioning technology, high-speed focusing and scanning system, short pulse, high- power and HPRF (High Pulse Repetition Frequency). 3D laser marking machine work efficiency than similar models increased by 20%
6. 3D laser marking machine Software control system can automatically calculate the arc radian, automatically adjust the focal length.
7. Can be marked on multi-level large format,on the three-dimensional surface, on the plane, according to the need to configure various types of lasers.
8. 3D laser marking machine with High Photoelectric conversion rate , up to 30%, the whole power less than 800W, 3D laser marking machine saving energy consumption.
9. 3D laser marking machine with friendly operation interface, it is suit for many file formats, such as dxf, plt, cnc, step, iges, etc
10. 3D laser marking machine with High electro-optic conversion efficiency, long life and easy maintenance
11. Fast marking speed and high processing efficiency
| Model | DM-3D |
| The Laser | Laser Source | Imported Fiber laser |
| Wavelength | 1064nm |
| Output Power | 30W | 50W | 100W |
| Plane maximum marking format | 600mm*600mm | 600mm*600mm | 600mm*600mm |
| Surface maximum marking format | 450mm*450mm | 450mm*450mm | 450mm*450mm |
| Beam quality M2 | <1.2 |
| Pulse Repeatable Frequency | 10kHz~200kHz |
| Cooling Method | Air cooling |
| Process | Marking way | XYZ Triaxial dynamic focusing |
| Focusing range | ≤±30mm |
| highest machining speed | 350 character/s |
| Repeat marking accuracy | 8urad |
| The Whole Machine | Operating Ambient Temperature | Temperature:10℃~35℃ Humidity:5%~75% |
| Power Demand | Single phase AC110V/220V 10A |
| Power consumption | ≤750W | ≤1200W | ≤1500W |
our service
1.Free Pre-Sales Consulting / Free Sample Marking
Offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users.
Free Sample Making is available.
Free Sample Testing is available.
We offer progressing solution design to all the distributor and users.
2. Services during the sale:
1>. Pre-check and accept products ahead of delivery;
2>. Help clients to draft solving plans.
3. After-sale services:
1. years fiber laser marking source gurantee!
2. Technician available overseas!
3. Free video training! A CD will be sent along with the machine, you can learn how to use it well!
4. Technician available with English, video call, remote control availale!
5. Instructions available!
4.Special Designing, Customized, OEM Order is accepted
Supernova Laser is rather willing to help you to realize your special idea and requirement by our innovative ability. So please do not hesitate to contact us when you need special design or customized machine and OEM machines.
