3W 5W USA Advance Optowave UV Laser Marking Machine For Plastic Security Seals / Filter
Product Description

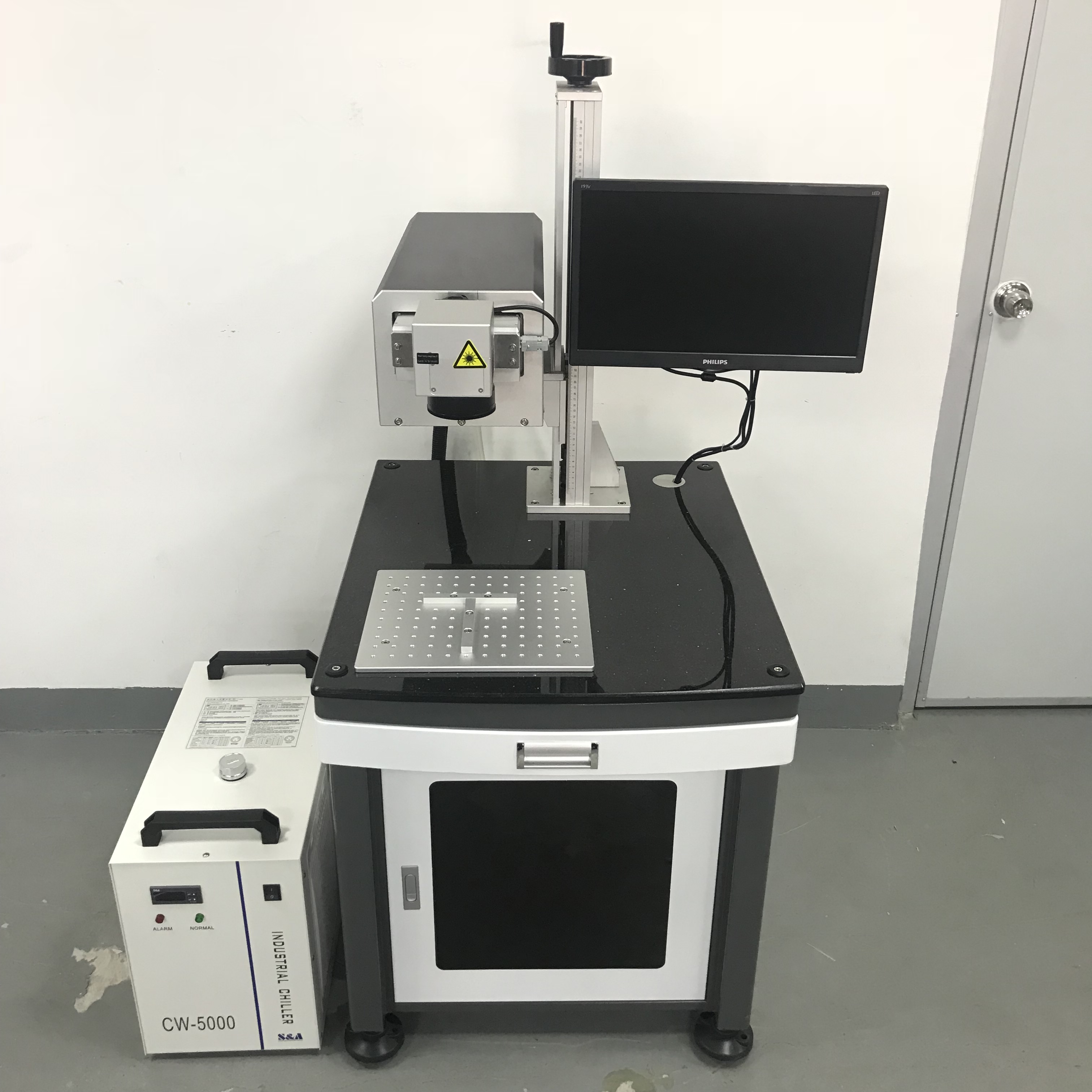

UV laser marking machine DMU-3W takes 355nm pumped purple light laser device as the light source and take advantage of previous generations machine to gain smaller diameter of focusing spot and fine marking effect.
The metal absorb purple light higher than infrared and therefore more suitable for marking on metal and glass materials compared with infrared pump machine. Narrower pulse width of laser makes a shorter time of processing on materials, thus the materials avoid being deformed or burnt due to thermal. With smaller heat affected area and more beautiful marking effect, our products can meet customer’s demand of higher marking requirements.
SPECIFICATIONS OF UV LASER MARKING MACHINE |
| Model | DMU-3W |
| Laser Power | 3W |
| Wavelength | 355nm |
| Fiber Laser Source | Inngu; Lifetime: 100, 000 hours |
| Marking Area | 70*70mm; 110*110mm;145*145mm (optional) |
| Min. Line Width | 0.03mm |
| Min. Character Size | ≤0.2mm |
| Marking Speed | ≤16000mm/s |
| Pulse Width | ≤60us |
| Repetition Positioning Accuracy | 10urad |
| Positioning Way | Red Light |
| Power Supply | 220V, 50/60HZ |
Features
1. Adopting doubling technique of intracavity frequency has greatly improve the stability of laser.
Design on laser cavity adopts a series of optimization method, so as to ensure the beam quality as the fundamental mode.
2. The machine takes 355nm pumped purple light laser device as the light source.
Narrower pulse width and smaller heat affection contribute to generate peak power.
3.Higher pulse stability, namely better pulse consistency of laser produces the same carving effect, so it’s verysuitable for precision marking. Higher pulse repetition frequency meets the need of quick marking and high production efficiency.
4. High efficiency of the photoelectric conversion and long service life.
5. Automatic in a rotary table (optional item), convenient feeding, fast speed, high efficiency.
6. It can support logos and graphs designed in DXF format from Auto-CAD, PLT, BMF, AI, JPG, etc.
7. It can mark date, bar code and two-dimension code automatically.
8. Superior performance, good stability, high conversion rate and low energy consumption.
Application

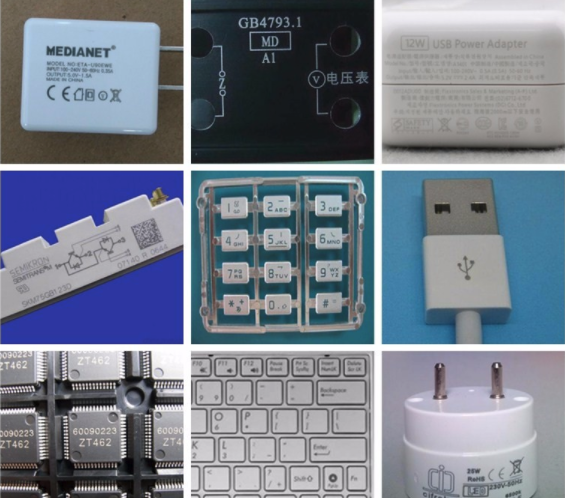

Widely used in special materials marking, cutting and processing. Such as all kinds of glass, LCD panel, textiles, chip ceramics, semiconductor wafers, IC grains, sapphires, polymer films, etc.
Our Service
Guarantee And After-sale Service:
.One year guarantee for whole machine
.24 hours technical support by E-mail
.Calling or door-to-door service
.Use-friendly English software,use manual and detailed videos/CD
we committed to: Supernova machinery for all products sold will be free one-year warranty, life-long maintenance!
PS: Welcome to send the samples to our company and we can make the samples free so that you can choose the most suitable product.
Our Company
Shenzhen Supernova Laser Co., Limited is located in Bao'an of Shenzhen city. We are a high & new technology enterprise in Shenzhen, and our products are applied in laser marking machine, laser welding machine and laser cutting machine.
Our business philosophy: innovation by technology, high quality by management, recognition by service.
Our company has a perfect after-sales service system. The sales and service network has covered all over the country. All sold-products have one-year warranty, and we provide software upgrade by free. Besides the support of laser marking and engraving technology, our company can dispatch engineers to your factory for check and maintenance periodically.
Q: How to Install the machine?
A: After receive our machine, customers do not need to install it and can use it directly.
Q: How to operate the machine? is training necessary?
A: The machine is mainly controlled by software. It’s very easy, not complicated. Before shipment, we will make a simple operation manual with pictures and provide user manual of software. Generally speaking, an operator, who is not familiar with fiber laser marking machine before can still operate it very well. According to customers’ requests, we can send our technician to customer’ plant for machine training or customers can come to our plant for machine training if needed.
Q: In case machine exists problem, how to do after sales service?
A: We provide two years machine warranty. During the two-year warranty, in case machine exists problem, we will provide parts required with free of charge by express. But as for the parts damaged by artificially, it does not fall within our warranty list. After the warranty, we still provide lifetime service.
Q: What’s package?
A: We have 3 layers package. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic bag.
Q: What’s delivery time?
A: Generally speaking, lead time is 5-7 working days after receive the payment.
Q: Can we add a protection cover?
A: Yes, we can add a protection cover if you need. We can customize the design as customers’ requests.
